Product Name : Anti - static Mat ( ESD mat for floor and table , ESD die cut rubber )
Description :
1 ) The anti-static mat is made up of two layers , the top layer ( hard ) is static dissipative and the bottom layer ( soft ) in conductive .
Features :-

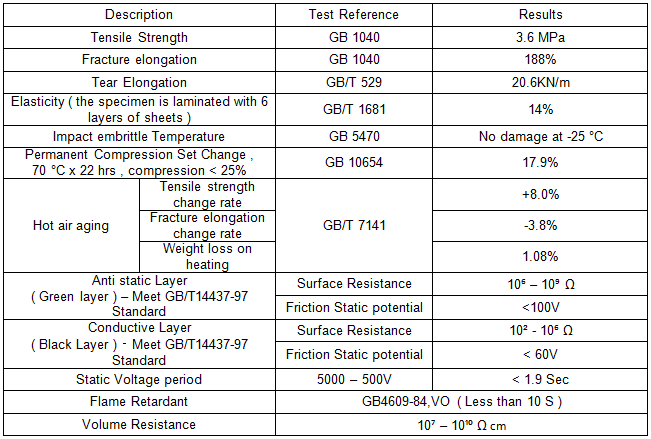

The anti static properties of mat are according with the relative requirements of SJ/T 10694-1996 .
The surface resistance of static dissipative layer ( 1.0 x 10⁶ ~ 10⁹ Ω )
The surface resistance of conductive layer ( 1.0 x 10³ ~ 10 Ω )
Volume resistance ( 1.0 x 10⁶ ~ 10⁹ Ω )
Surface tirboelectric voltage of the static dissipative material < 200 V
The time of static discharging below 100V should be less than 1 second .
Application :-
Product Line , CMOS chips , microprocessor , semiconductor , dish drivers , composites , LCD screen product , circuit product line , hospitals and Pharmaceutical industries , precision instrument , optic parts .

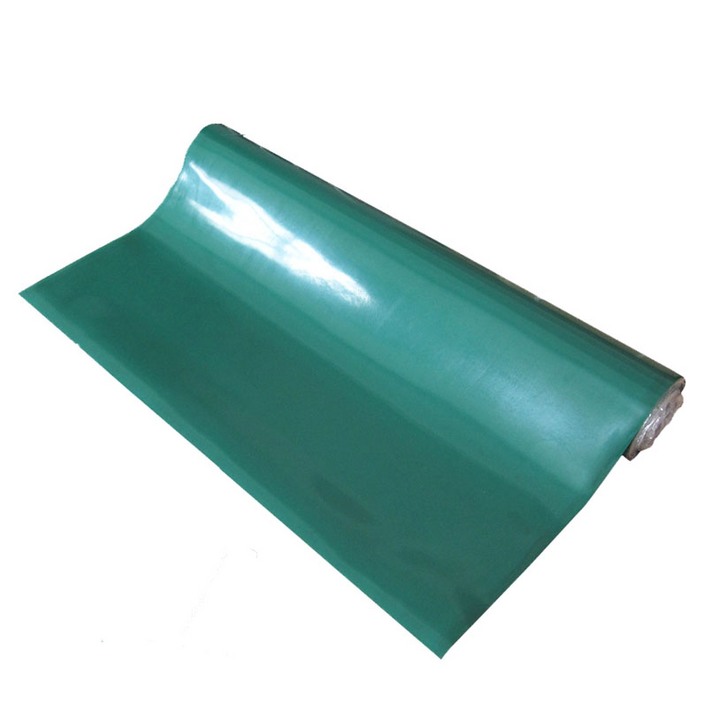

Specification : 2mm ( Thickness ) x 1 m ( Width ) x 10 m ( length ) / Roll
Description :

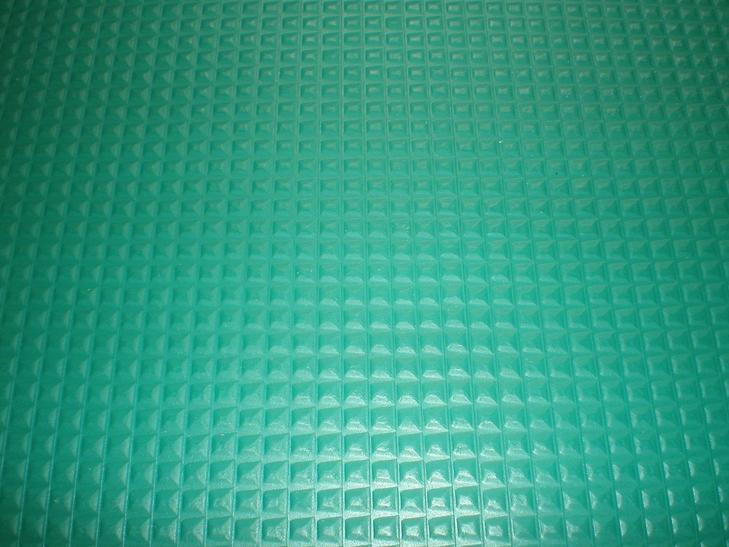

1 ) The anti-static mat is made up of two layers , the top layer ( hard ) is static dissipative and the bottom layer ( soft ) in conductive .
Features :-

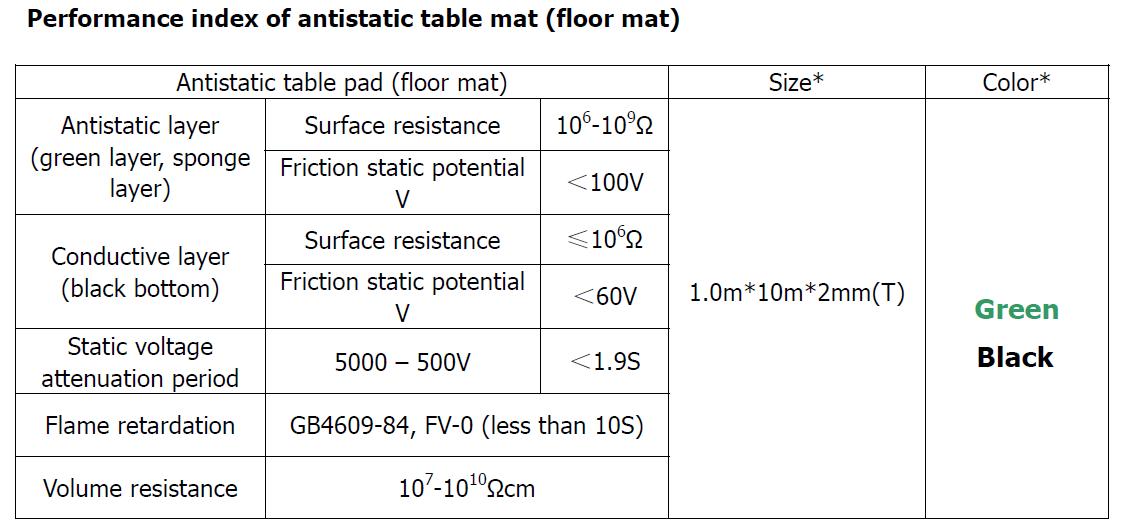

The anti static properties of mat are according with the relative requirements of SJ/T 10694-1996 .
The surface resistance of static dissipative layer ( 1.0 x 10⁶ ~ 10⁹ Ω )
The surface resistance of conductive layer ( 1.0 x 10³ ~ 10 Ω )
Volume resistance ( 1.0 x 10⁶ ~ 10⁹ Ω )
Surface tirboelectric voltage of the static dissipative material < 200 V
The time of static discharging below 100V should be less than 1 second .
Application :-
Product Line , CMOS chips , microprocessor , semiconductor , dish drivers , composites , LCD screen product , circuit product line , hospitals and Pharmaceutical industries , precision instrument , optic parts .

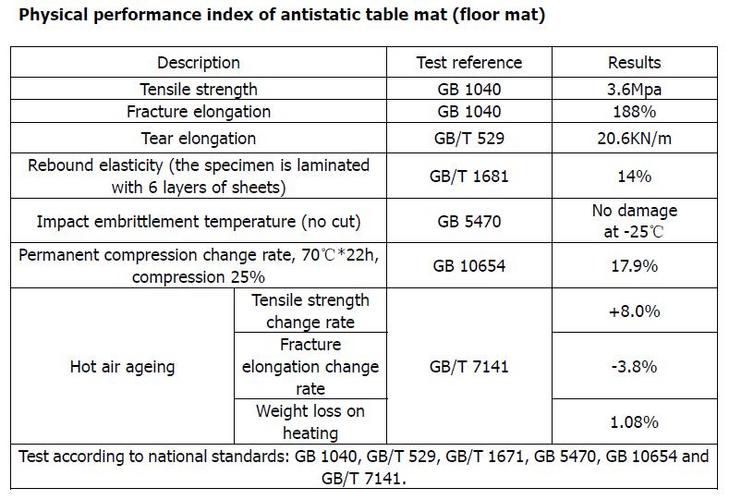

Specification : 2mm ( Thickness ) x 1 m ( Width ) x 10 m ( length ) / Roll
1 ) Anti static ( ESD )Mat and ESD Die Cut Rubber
Anti - ElectroStatic Materials ( ESD Rubber )
Copyright © 2010 Global Systems Enterprise ( SA0134363-A ) ALL RIGHTS RESERVED
GS e-Catalogue
eRubber and Heat Insulation Mall

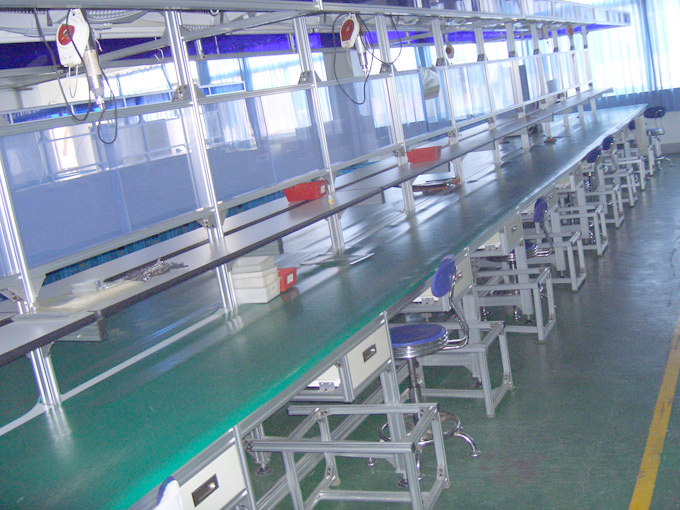

Where the ESD table Mat place ?
What is Static Electricity ?
earth
Proposed Method of installing Anti Static ( ESD ) Table Mat :-

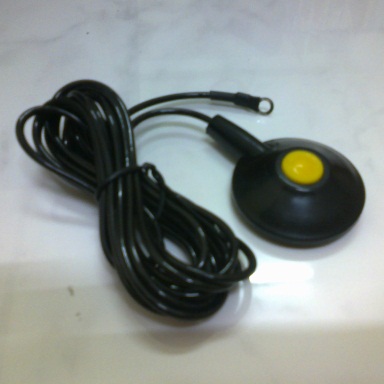

Lay the ESD Mat on the table with Green layer face top , connect the button of the ESD grounding line of the ESD surface to the other end for grounding discharge . You may use other form of grounding method .
1) The Green surface acts to gather the static electricity around the table ,
with resistance of 10 ~ 10 Ω/sq.
2) The Black Bottom Layer acts as a connection with the ESD table pad to the
other end of grounding point.
3) A good grounding point can be made several different ways. In houses with
modern wiring that is up to code the ground pin on the AC plug in can be used,
or the screw that holds the outlets cover plate on. This is because house wiring
actually has a wire or spike going into the earth somewhere where the power is
tapped from the main power lines. For people whose house wiring isn't quite
right a spike driven into the earth at least 3 feet or a simple electrical connection
to metal plumbing (worst option) can be used. The main thing is to establish
an electrical path to the earth outside the house. By effectively and proper
connection , static electricity discharge through the line to earth .
4) An antistatic mat is one of a number of antistatic devices designed to help
eliminate static electricity. It does this by having a conductive material
embedded within the mat that collects the static. The mat would need to
be grounded (earthed). This is usually accomplished by plugging into the
grounded line . It's important to discharge at a slow rate, therefore a resistor
should be used in earthing the mat.
Lay the ESD Mat on the table with Green layer face top , connect the button of the ESD grounding line of the ESD surface to the other end for grounding discharge . You may use other form of grounding method .
1) The Green surface acts to gather the static electricity around the table ,
with resistance of 10 ~ 10 Ω/sq.
2) The Black Bottom Layer acts as a connection with the ESD table pad to the
other end of grounding point.
3) A good grounding point can be made several different ways. In houses with
modern wiring that is up to code the ground pin on the AC plug in can be used,
or the screw that holds the outlets cover plate on. This is because house wiring
actually has a wire or spike going into the earth somewhere where the power is
tapped from the main power lines. For people whose house wiring isn't quite
right a spike driven into the earth at least 3 feet or a simple electrical connection
to metal plumbing (worst option) can be used. The main thing is to establish
an electrical path to the earth outside the house. By effectively and proper
connection , static electricity discharge through the line to earth .
4) An antistatic mat is one of a number of antistatic devices designed to help
eliminate static electricity. It does this by having a conductive material
embedded within the mat that collects the static. The mat would need to
be grounded (earthed). This is usually accomplished by plugging into the
grounded line . It's important to discharge at a slow rate, therefore a resistor
should be used in earthing the mat.
Correctly grounded station , the table surface and the wrist strap each have their own path to ground .
Incorrectly grounded station , the wrist strap is connected to the table surface , in the event of ESD in the wrist strap it wil also raise the table's potential . BUT , it is better than no protection .
6
9
earth
Triboelectric
damaging your assets
damaging your assets
