low voltage insulation rubber mat label medium voltage insulation rubber mat label non conductive rubber mat label
Indication Label : At Bottom of Rubber Mats
SWITCHBOARD RUBBER MAT MALAYSIA SWITCHBOARD RUBBER MAT MALAYSIA low voltage insulation rubber malaysia low voltage insulation rubber mat malaysia SWITCHBOARD RUBBER MAT MALAYSIA SWITCHBOARD RUBBER MAT MALAYSIA dielectric rubber mat malaysia SWITCHBOARD RUBBER MAT MALAYSIA

Non Conductive Switchboard Mat / Dielectric / High Voltage Insulation Rubber Mat Malaysia

​-- with Anti Slip ( Corrugated / Diamond Plate ) Top Surface

SWITCHBOARD RUBBER MAT MALAYSIA SWITCHBOARD RUBBER MAT MALAYSIA SWITCHBOARD RUBBER MAT MALAYSIA
Copyright © GSE ONLINE SDN BHD ( 1116968-P ) ALL RIGHTS RESERVED
This webpage is designed to guide potential and existing users wishing to conform to the new EU/UK requirements for the supply and use of matting with electrical safety and resistance characteristics and make the correct choice from the explanations and details listed below.

​​​A) Which product is the correct Electrical Insulating Matting for protection against electric shock risk?

BS EN 61111:2009 is the latest standard for electrical insulating matting in providing electrical protection.

B) International Withdrawal of BS921:1976?
This old standard is being withdrawn on 1st Jan 2013 ( Standard number, BS 921: 1976, Specification: Rubber mats for electrical purposes, status: WITHDRAWN ) as it conflicts with IEC61111:2009.

​The direct Electrical Insulating Matting to replace BS921 is class 0 IEC 61111:2009 for working up to 1kV AC.
For higher voltage, you may select higher classes 1, 2, 3 or 4 according to the voltage resistance required.

C) Quality Assurance
Our Switchboard Mattings are backed with a detailed test certificate  & RoHS compliant from an independently accredited Malaysia Test Facility.​​​​

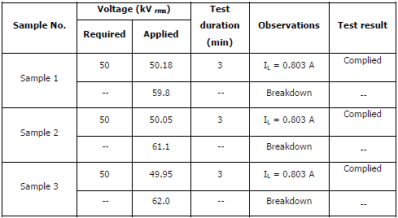

​​​Our Switchboard matting / high voltage insulation rubber was tested according to technical specifications:
A) BS EN 61111 Clause 5.6.4.3, Voltage Withstand Test
B) Complied to RoHS I & II, ​
On 4th June 2015, Commission Directive (EU) 2015/863 was published in the Official Journal of the European Union (OJEU) to include the phthalates ( BBP, DBP, DEHP and DIBP, these are used to soften PVC and Vinyl ) into ANNEX II of the RoHS Recast Directive.
The new law restricts each phthalate to no more than 0.1% ( mg/kg = ppm ; 0.1wt% = 1,000ppm ) in each homogeneous material of an electrical product.

D) Product Characteristics:-
1) Material: NATURAL RUBBER ( NR )  BASE POLYMER

​​​​2) Model: GS-LV ( Low Voltage ) Switchboard Matting / High Voltage Insulation Rubber Mat -- with Anti Slip ( Corrugated ) on Top Surface, Withstood 10kV ( Class 0 ), 2.5mm Nominal Thickness, GREY Colour with TNBR Test Certificate  : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 0  )

​​3) Model: GS-SL Switchboard Matting / High Voltage Insulation Rubber Mat -- with Anti Slip ( Corrugated ) on Top Surface, Withstood 20kV ( Class 1 ), 3mm Nominal Thickness, BLACK Colour with TNBR Test Certificate : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 1 )

4) Model: GS-MV Switchboard Matting / Medium Voltage Insulation Rubber Mat -- with Anti Slip ( Corrugated ) on Top Surface, Withstood 30kV ( Class 2 ), 5mm Nominal Thickness, BLACK Colour with TNBR Test Certificate : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 2 )

5) Model: GS-SM Switchboard Matting / Medium Voltage Insulation Rubber Mat -- with Anti Slip ( Diamond Plate ) on Top Surface, Withstood 30kV ( Class 2 ), 5mm Nominal Thickness, BLACK Colour with TNBR Test Certificate : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 2 )

6) Model: GS-SMG Switchboard Matting / Medium High Voltage Insulation Rubber Mat -- with Anti Slip ( Diamond Plate ) on Top Surface, Withstood 40kV ( Class 3 ), 5mm Nominal Thickness, GREY Colour with TNBR Test Certificate :
( BS EN 61111: 2009 Clause 5.6.4.3 Class 3 )

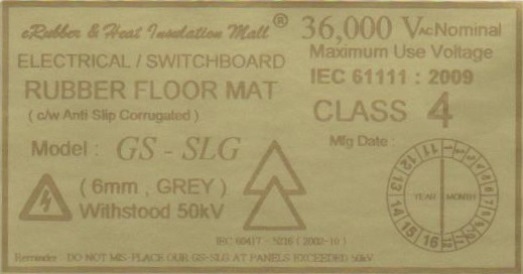

7) Model: GS-SLG Switchboard Matting / High Voltage Insulation Rubber Mat -- with Anti Slip ( Corrugated ) on Top Surface, Withstood 50kV ( Class 4 ), 6mm Nominal Thickness, GREY Colour with TNBR Test Certificate  : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 4 )

8) COST-SAVING GRADE:-
​Cost-saving Model: SBR20 Switchboard Matting / High Voltage Insulation Rubber Mat -- with Anti Slip ( Diamond ) on Top Surface, Withstood 20kV ( Class 1 ), 5mm Nominal Thickness, BLACK Colour with TNBR Test Certificate : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 1 )


9) COST-SAVING GRADE:-
​Cost-saving Model: SBR30 Switchboard Matting / High Voltage Insulation Rubber Mat -- with Anti Slip ( Corrugated ) on Top Surface, Withstood 30kV ( Class 2 ), 9.5mm (3/8") Nominal Thickness, BLACK Colour with TNBR Test Certificate : ( BS EN 61111: 2009 Clause 5.6.4.3 Class 2 )


10)
Surface finishing:  with anti-slip diamond plate surface to provide a safe working environment

11) Scope , Usage & Application :-
High Voltage Insulation Rubber Mats / Non-Conductive Mats - Most commonly called Switchboard matting, these non-conductive mats protect workers from deadly shocks generated by high voltage equipment.

High Voltage Insulation Rubber mats are NORMALLY used as a floor covering electrical panels at Power Transformer Rooms, Sub-Station, High Voltage Panels, LT & HT Labs, Control Panels etc . it acts as a safety precaution for workers from electrical shock whether they are involved directly in electricity generation, transmission, distribution or another usage.

Eventually, the High Voltage Insulation Rubber Mats need to be tested ( with proven data from the LOCAL or an internationally accredited testing body ) before being placed in electrical generator rooms.

The carelessness of handling electrical apparatus or Mis-used of high voltage insulation rubber sheets/mats could be harmful to workers. For example, Matting Class 0 ( 10kV ) or Class 1 ( 20 kV )  High Voltage Insulation Rubber Mats placed at Class 2, 30 kV working environment of electrical generator rooms.

Choosing the correct High Voltage Insulation Rubber Mat / Sheet is extremely IMPORTANT; these mats save money and lives because human life is above everything. We strongly recommend our customers use one class higher ( * if your cost persists ) than the nominal working voltage environment to secure the safety of workers. Our goal is to assist in achieving " ZERO " industrial accidents resulting from voltage leakage.

​​Life span :
​The Life span of The Switchboard Rubber Mats very much depends on Rubber Compound Itself and external environmental factors such as:-
1) Foot traffic, high foot traffic reduces the rubber’s life span.
2) Environments include exposure to oils, moisture, caustic chemicals or fluids, and prolonged exposure to high temperatures ( direct exposure to sunlight ).
3) Cleaning Method: No harmful/corrosive detergents.​

Know-How :​
When to change my Switchboard Rubber Mats?
1) Our recommendation is to CHANGE IT when you find your rubber mats become "hardened" and crack ( puncture ) due to ageing. (AFTER INSTALLATION)

​(Electrical Professionals highly recommend that electrical insulation rubber mat be replaced every 12 months of usage for optimum performance) Electrical Insulation Rubber matting is not permanent and needs to be replaced periodically & consistently.


danger sign
OUTER CARTON LABEL INDICATION :
dielectric rubber mat malaysia dielectric rubber mat malaysia
High Voltage Rubber Malaysia dielectric rubber malaysia electrical rubber malaysia GSE ONLINE SDN. BHD.
SCAN OUR QR CODE CATALOGUE
QR Code Electrical Insulation Rubber Mat Catalogue Malaysia low voltage electrical insulation rubber mat label Malaysia Medium voltage electrical insulation rubber mat label Malaysia high voltage electrical insulation mat label Malaysia high voltage electrical insulation rubber mat label Malaysia high voltage electrical rubber mat label Malaysia RoHS Compliant electrical insulation rubber mat Malaysia Medium Voltage Insulation Rubber Mat Malaysia Medium Voltage Insulation Rubber Mat Label Malaysia switchboard rubber mat label GS-SMG 40kV label GSE ONLINE SDN. BHD.
Disclaimer :
 ​* Note: Users need to evaluate suitability for their industry's use ( applications ) before placing an order from us.
 The Information provided on this website best advises our customers to correspond to current electrical matting standards.
 In the individual case, it is the customer's sole responsibility to evaluate requirements, mainly if specified properties are sufficient for use.​​
working voltage Insulation rubber mat Malaysia
